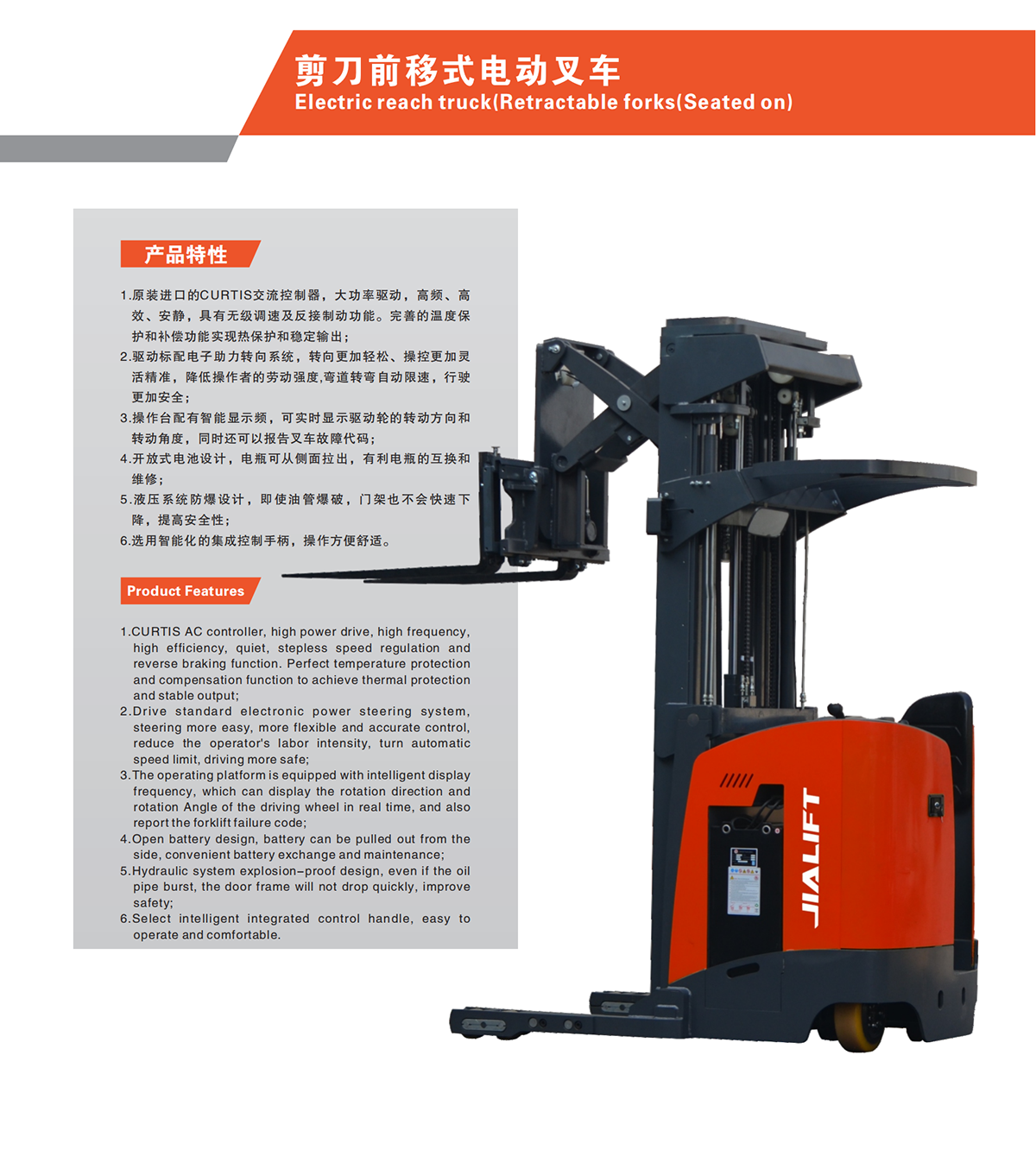

1.CURTIS AC controller, high power drive, high frequency,high efficiency, quiet, stepless speed regulation andreverse braking function. Perfect temperature protectionand compensation function to achieve thermal protection and stable output;
2.Drive standard electronic power steering systemsteering more easy, more flexible and accurate control,reduce the operator's labor intensity, turn automaticspeed limit, driving more safe;
3.The operating platform is equipped with intelligent displayfrequency, which can display the rotation direction androtation Angle of the driving wheel in real time, and alsoreport the forklift failure code;
4.0pen battery design, battery can be pulled out from theside,convenient battery exchange and maintenance;
5.Hydraulic system explosion-proof design, even if the oilpipe burst, the door frame will not drop quickly,improvesafety;6.Select intelligent integrated control handle, easy tooperate and comfortable.

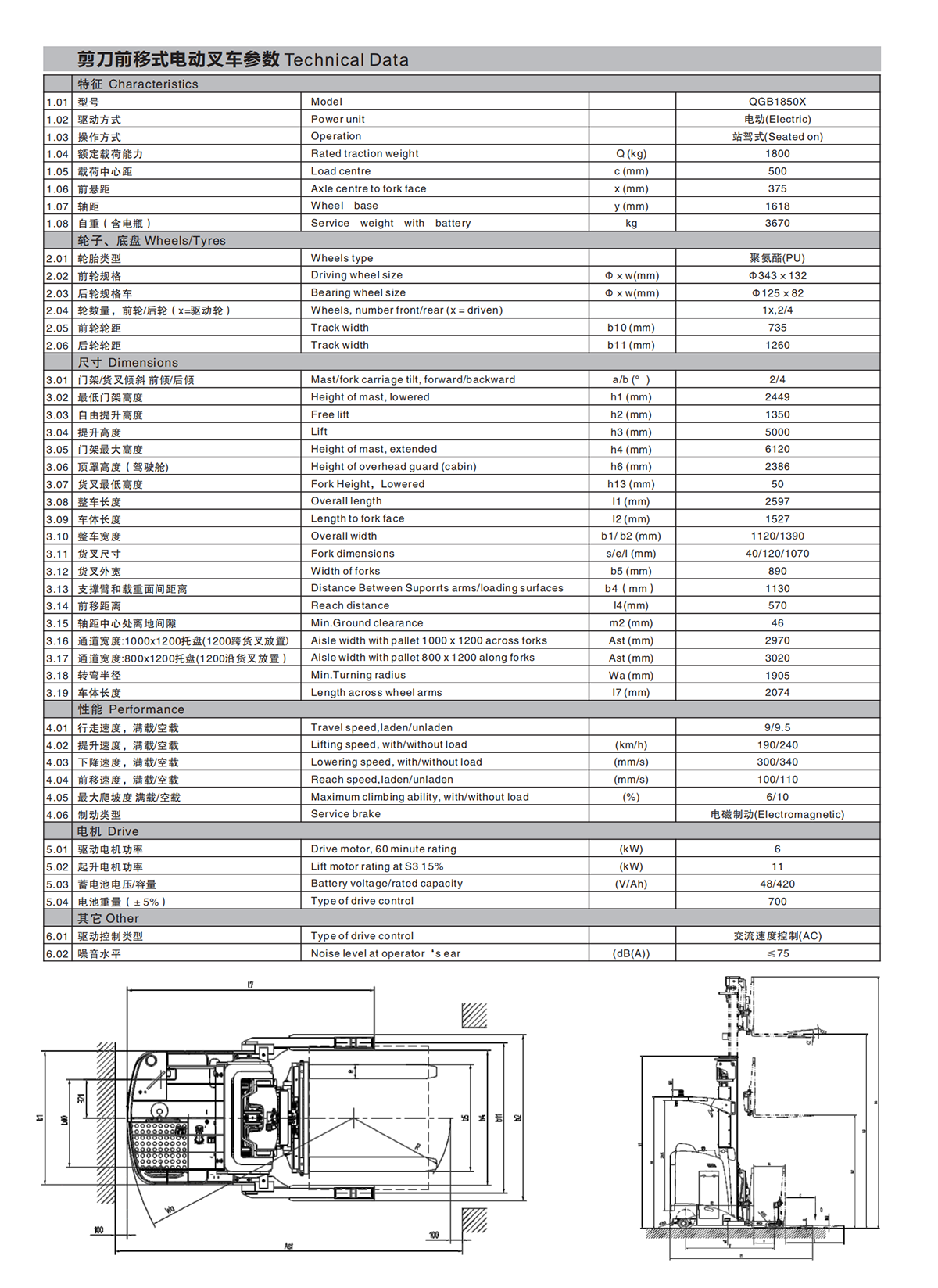

Technical data:
| QGB18X | ||||
| distinguishing mark | ||||
| 1.1 | Manufacturer | Jialift | ||
| 1.2 | Model designation | QGB18X | ||
| 1.3 | Drive unit | electric | ||
| 1.4 | Operator type | standing | ||
| 1.5 | rated capacity | Q | kg | 1800 |
| 1.6 | Load center distance | c | mm | 500 |
| 1.7 | Axle centre to fork face | x | mm | 375 |
| 1.8 | Wheelbase | y | mm | 1623 |
| Weight | ||||
| 2.1 | Service weight （include battery） | kg | 3870 | |
| 2.2 | Axle loading ,Pallet fork forward,unladen front/rear | kg | 2242/1628 | |
| 2.3 | Axle loading ,Pallet fork back,unladen front/rear | kg | 2392/1478 | |
| 2.4 | Axle loading ,Pallet fork forward,laden front/rear | kg | 1648/3722 | |
| 2.5 | Axle loading ,Pallet fork back,laden front/rear | kg | 2274/3096 | |
| Types,Chassis | ||||
| 3.1 | Tyre type driving wheels/loading wheels | PU | ||
| 3.2 | Tyre size, driving wheels（diameter×width） | mm | Φ343×132 | |
| 3.3 | Tyre size, loading wheels（diameter×width） | mm | Φ125×82 | |
| 3.4 | Tyre size, caster wheels（diameter×width） | mm | Φ178×73 | |
| 3.5 | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,2/4 | |
| 3.6 | Track width, front,driving side | b10 | mm | 735 |
| 3.7 | Track width,rear,loading side | b11 | mm | 1260 |
| Dimensions | ||||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b | (°) | 2/4 |
| 4.2 | Height of mast, lowered | h1 | mm | 2449 |
| 4.3 | Free lift | h2 | mm | 1350 |
| 4.4 | Lift height | h3 | mm | 5000 |
| 4.5 | Lowered height | h13 | mm | 50 |
| 4.6 | Overall length | l1 | mm | 2600 |
| 4.7 | Length to face of forks | l2 | mm | 1522 |
| 4.8 | Overall width | b1/ b2 | mm | 1120/1390 |
| 4.9 | Fork dimensions | s/ e/ l | mm | 40/120/1070 |
| 4.10 | Distance between fork-arms | b5 | mm | 300-600 |
| 4.11 | Ground clearance, center of wheelbase | m2 | mm | 46 |
| 4.12 | Reach distance | l4 | mm | 570 |
| 4.13 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2970 |
| 4.14 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 3020 |
| 4.15 | Turning radius | Wa | mm | 1905 |
| Performance data | ||||
| 5.1 | Travel speed, laden/ unladen | km/h | 9/9.5 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.19/0.24 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.3/0.34 | |
| 5.4 | Reach speed,laden/unladen | m/ s | 0.1/0.11 | |
| 5.5 | Max. gradeability, laden/unladen | % | 6/10 | |
| 5.6 | Acceleration time with/without load | s | － | |
| 5.7 | Service brake type | electromagnetic | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | kW | 6.0 | |
| 6.2 | Lift motor rating at S3 15% | kW | 11 | |
| 6.3 | The maximum allowed size battery | mm | 1010x345x780 | |
| 6.4 | Battery voltage/nominal capacity K5 | 48/420 | ||
| 6.5 | Battery weight | kg | 720 | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | － | |
| Addition data | ||||
| 8.1 | Type of drive control | AC | ||
| 8.2 | Steering type | electric | ||
| 8.3 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
