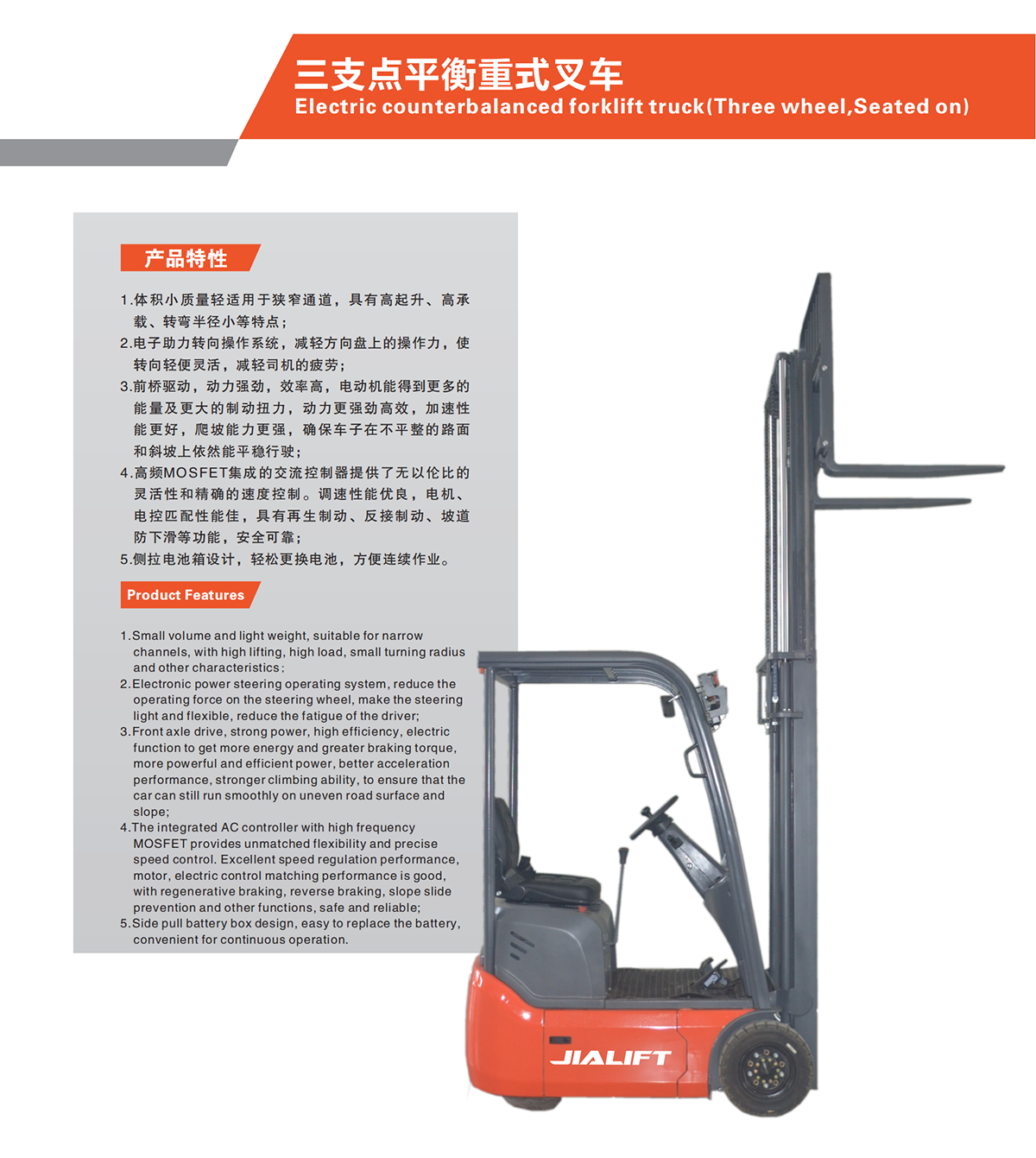

Product Features
1.Small volume and light weight, suitable for narrowchannels, with high lifting, high load, small turning radiusand other characteristics;
2.Electronic power steering operating system, reduce theoperating force on the steering wheel, make the steeringlight and flexible, reduce the fatigue of the driver;3.Front axle drive, strong power, high efficiency, electricfunction to get more energy and greater braking torque.more powerful and efficient power,better accelerationperformance,strongerclimbing ability, to ensure that thecar can still run smoothly on uneven road surface andslope;4.The integrated AC controller with high frequencyMOSFET provides unmatched flexibility and precisespeed control. Excellent speed regulation performance,motor,electric control matching performance is good,with regenerative braking, reverse braking, slope slideprevention and other functions,safe and reliable;5.Side pull battery box design, easy to replace the battery,convenient for continuous operation.

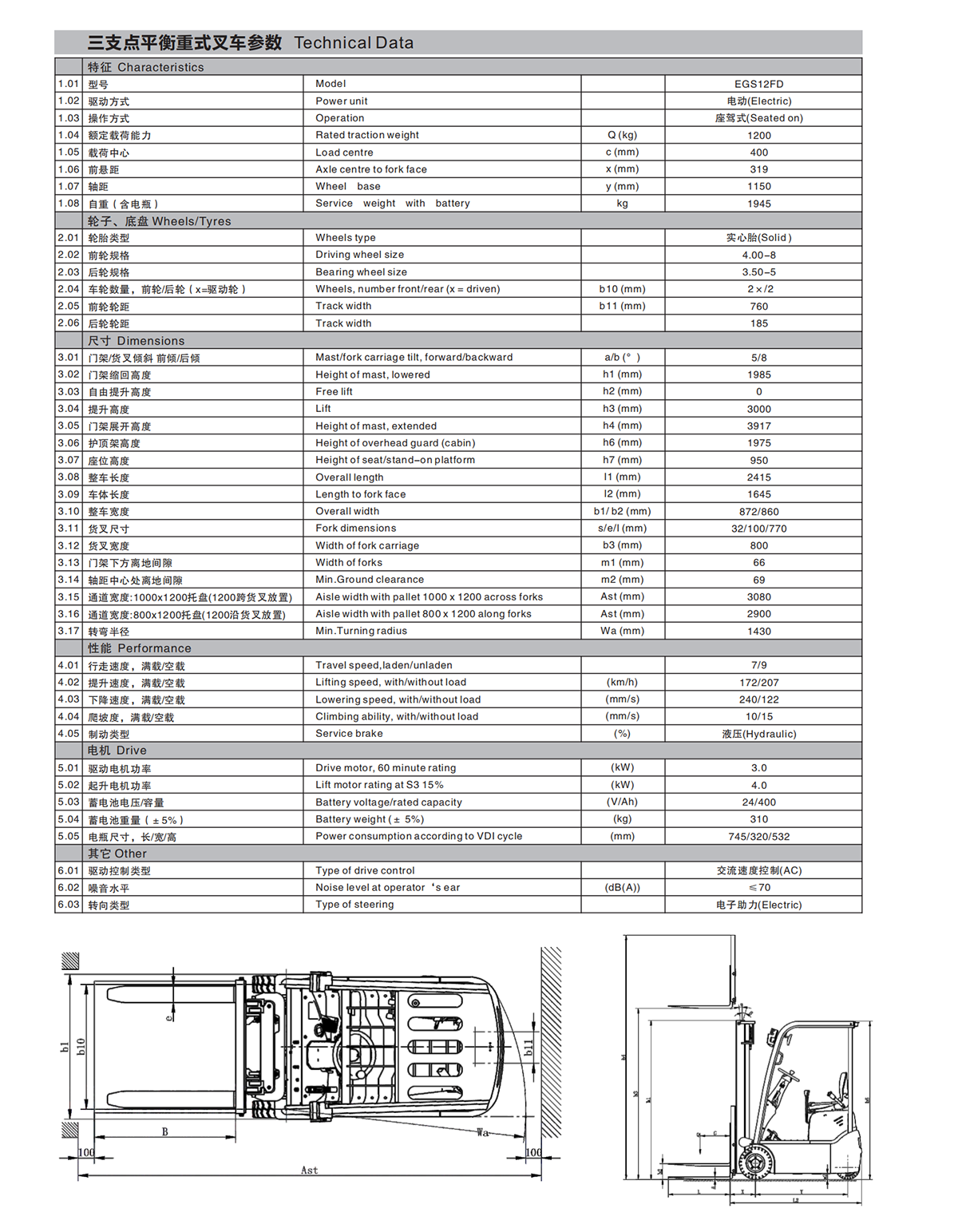

Technical data:
| EGS12FD | |||
| distinguishing mark | |||
| 1.1 | Manufacturer | JIALIFT | |
| 1.2 | Manufacturer's type designation | EGS1245FD | |
| 1.3 | Drive | Electric | |
| 1.4 | Operator type | Seated | |
| 1.5 | Load capacity | Q(kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 400 |
| 1.8 | centre of drive axle to fork | x (mm) | 319 |
| 1.9 | Wheelbase | y (mm) | 1150 |
| Weight | |||
| 2.1 | Service weight （include battery） | kg | 2212 |
| 2.2 | Axle loading,laden front/rear | kg | 2905/307 |
| 2.3 | Axle loading,unladen front/rear | kg | 1105/1007 |
| Types,Chassis | |||
| 3.1 | Tyre type driving wheels/loading wheels | Solid tire | |
| 3.2 | Tyre size,front | mm | 4.00-8 |
| 3.3 | Tyre size ，rear | mm | 3.50-5 |
| 3.5 | Wheels,number front rear(x=driven wheels) | mm | 2x/2 |
| 3.6 | Tread,front | b10 (mm) | 760 |
| 3.7 | Thread,rear | b11(mm) | 185 |
| Dimensions | |||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b (°) | 5/5 |
| 4.2 | Height,mast lowered | h1(mm) | 1985 |
| 4.3 | Free lift | h2(mm) | 1107 |
| 4.4 | Lift height | h3 (mm) | 4500 |
| 4.5 | Maximum height of gantry | h4(mm) | 5378 |
| 4.6 | Lowered height | h13(mm) | 35 |
| 4.7 | Height of overhead guard (cabin) | h6 (mm) | 1975 |
| 4.8 | Seat height | h7(mm) | 950 |
| 4.19 | Overall length | l1 (mm) | 2415 |
| 4.20 | Length to face of forks | l2(mm) | 1645 |
| 4.21 | Overall width | b1 (mm) | 872/860 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 35/100/770 |
| 4.25 | Distance between fork-arms | b5 (mm) | 220-800 |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 69 |
| 4.33 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 2975 |
| 4.34 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3175 |
| 4.35 | Turning radius | Wa(mm) | 1540 |
| Performance data | |||
| 5.1 | Travel speed, laden/ unladen | km/h | 7/9 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.183/0.282 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.213/0.226 |
| 5.4 | Max. gradeability, laden/unladen | % | 10/15 |
| 5.9 | Acceleration time with/without load | s | / |
| 5.10 | Service brake type | Hydraulic | |
| Electric-engine | |||
| 6.1 | Drive motor rating S2 60 min | kW | 3.0 |
| 6.2 | Lift motor rating at S3 15% | kW | 4 |
| 6.4 | Battery voltage/nominal capacity K5 | V/Ah | 24/400 |
| 6.5 | Battery weight | kg | 310 |
| The maximum allowed size battery | mm | 745/320/532 | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | － |
| Addition data | |||
| 8.1 | Type of drive control | AC | |
| Steering type | Electronic Assistance | ||
| 8.4 | Sound pressure level at the driver’s ear | dB(A) | ≤70 |
