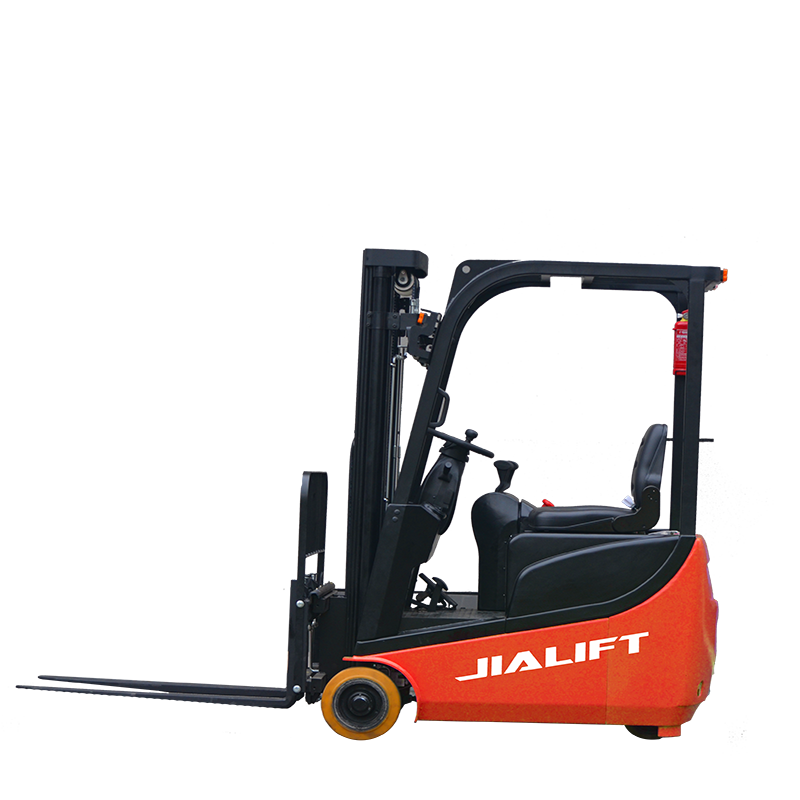

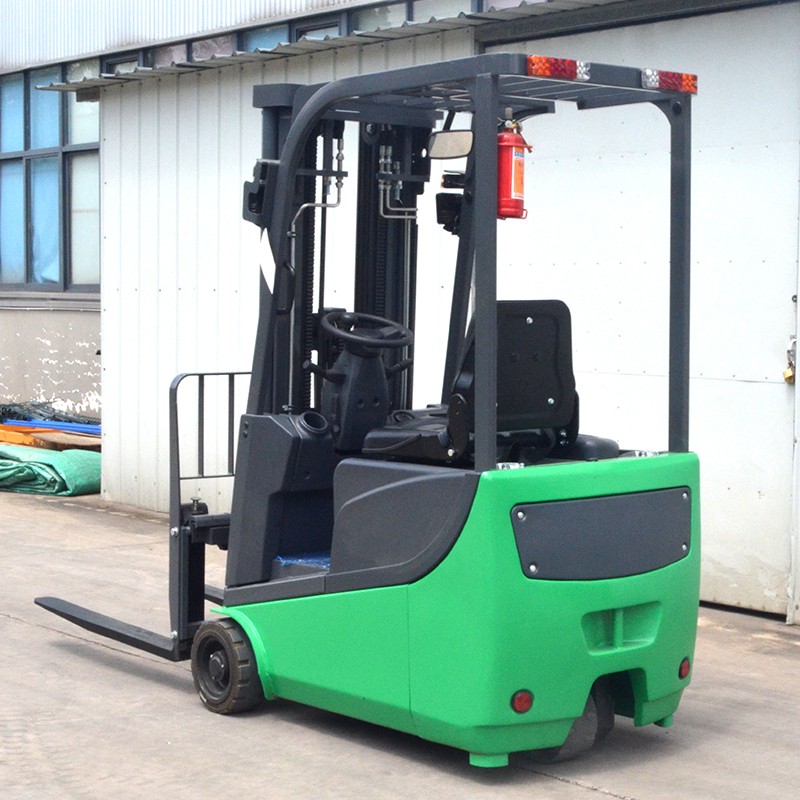

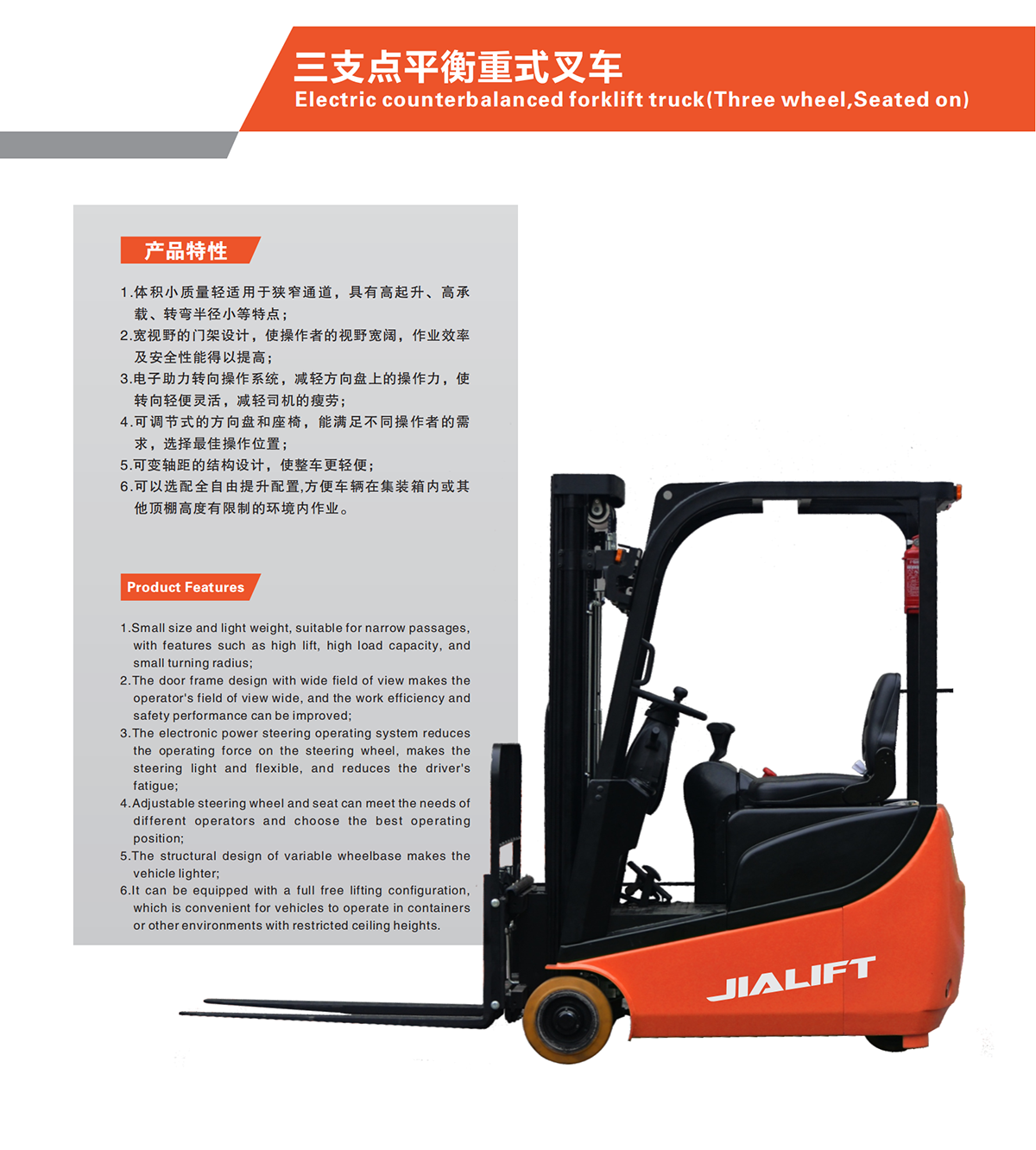

Small size and light weight,suitable for narrow passageswith features such as high lift, high load capacity, andsmall turning radius;
The wide field of view of mast design broadens theoperator's filed of view; Work efficiency and safetyperformance can be improved;
The electronic power steering operating system reducesthe operating force on the steering wheel, makes thesteering light and flexible, can reduce driver fatigue thedriver's fatigue;
Adjustable steering wheel and seat can meet the needs ofdifferent operators and choose the best operatingposition;
The structural design of variable wheelbase makes thevehicle lighter;

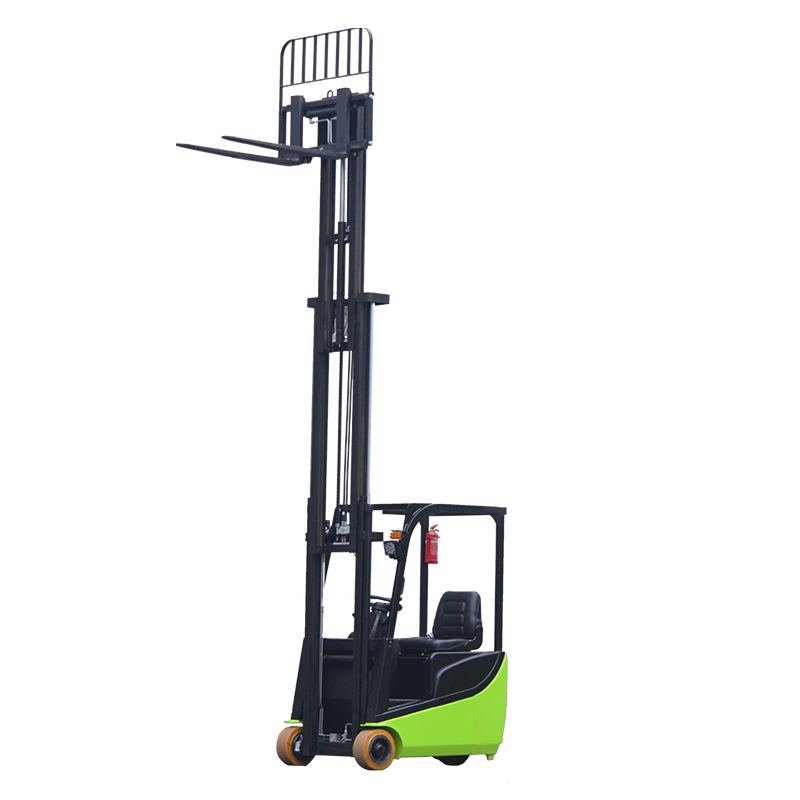

lt can be equipped with a full free lifting configuration.which is convenient for vehicles to operate in containersor other environments with restricted ceiling heights.
Technical data
| E10-15GS | |||||
| distinguishing mark | |||||
| 1.1 | Manufacturer | JIALIFT | |||
| 1.2 | Manufacturer's type designation | E1030GS | E1330GS | E1530GS | |
| 1.3 | Drive | Electric | |||
| 1.4 | Operator type | Seated | |||
| 1.5 | Load capacity | Q(kg) | 1000 | 1300 | 1500 |
| 1.6 | Load center distance | c(mm) | 500 | ||
| 1.7 | centre of drive axle to fork | x (mm) | 235 | 170 | |
| 1.9 | Wheelbase | y (mm) | 1090 | ||
| Weight | |||||
| 2.1 | Service weight （include battery） | kg | 1930 | 2100 | 2260 |
| 2.2 | Axle loading, laden front axle side/rear axle side | kg | 2340/590 | 2820/580 | 3110/650 |
| 2.3 | Axle loading, unladen front axle side/rear axle side | kg | 820/1110 | 820/1280 | 810/1450 |
| Types,Chassis | |||||
| 3.1 | Tyre typefront axle/rear axle | PU/Rubber | PU/Rubber | ||
| 3.2 | Tyre size, loading wheels（diameter×width） | mm | Ф305x127/Ф305x140 | Ф305x127/Ф305x140 | |
| 3.3 | Tyre size, driving wheels（diameter×width） | mm | Ф250x127 | Ф250x127 | |
| 3.5 | Wheels, number driving，Front /lRear (x=drive wheels) | mm | 3，2/1X | 3，2/1X | |
| 3.6 | Track width, front,loading side | b11 (mm) | 783 | 783 | |
| 3.7 | Track width,rear,driving side | mm | 0 | 0 | |
| Dimensions | |||||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b (°) | 2/5 | 2/5 | |
| 4.2 | Height of mast, lowered | h1(mm) | 1995 | 1995 | |
| 4.3 | Free lift | h2(mm) | 135 | 135 | |
| 4.4 | Lift height | h3 (mm) | 3000 | 3000 | |
| 4.5 | Maximum height of gantry | h4(mm) | 3952 | 3952 | |
| 4.6 | Lowered height | h13(mm) | 35 | 35 | |
| 4.7 | Height of overhead guard | h6(mm) | 1980 | 1980 | |
| 4.8 | seat height | h7(mm) | 960 | 960 | |
| 4.12 | Coupling height | h10(mm) | 450 | 450 | |
| 4.19 | Overall length | l1 (mm) | 2565 | 2500 | |
| 4.20 | Length to face of forks | l2 (mm) | 1619 | 1554 | |
| 4.21 | Overall width | b1 (mm) | 938 | 938 | |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 35/100/950 | ||
| 4.25 | Distance between fork-arms | b5 (mm) | 220-750 | 220-606 | |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 90 | ||
| 4.33 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 2930 | 2865 | |
| 4.34 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3038 | 2975 | |
| 4.35 | Turning radius | Wa(mm) | 1348 | ||
| Performance data | |||||
| 5.1 | Travel speed, laden/ unladen | km/h | 6.2/7.2 | ||
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.132/0.234 | 0.127/0.234 | 0.126/0.25 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.17/0.20 | 0.171/0.20 | 0.19/0.30 |
| 5.7 | Max. gradeability, laden/unladen | % | 6/10 | 6/10 | 5/10 |
| 5.9 | Acceleration time with/without load | s | / | / | / |
| 5.10 | Service brake type | Electromagnetic and Hydraulic | |||
| Electric-engine | |||||
| 6.1 | Drive motor rating S2 60 min | kW | 3.0 | ||
| 6.2 | Lift motor rating at S3 15% | kW | 4.5 | ||
| 6.4 | Battery voltage/nominal capacity K5 | V/Ah | 24/300 | 24/350 | 24/400 |
| 6.5 | Battery weight | kg | 280 | 320 | 360 |
| The maximum allowed size battery | mm | 645/292/525 | 645/292/560 | 645/292/595 | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | － | ||
| Addition data | |||||
| 8.1 | Type of drive control | AC | |||
| Steering type | Electronic Assistance | ||||
| 8.4 | Sound pressure level at the driver’s ear | dB(A) | ≤80 | ||
