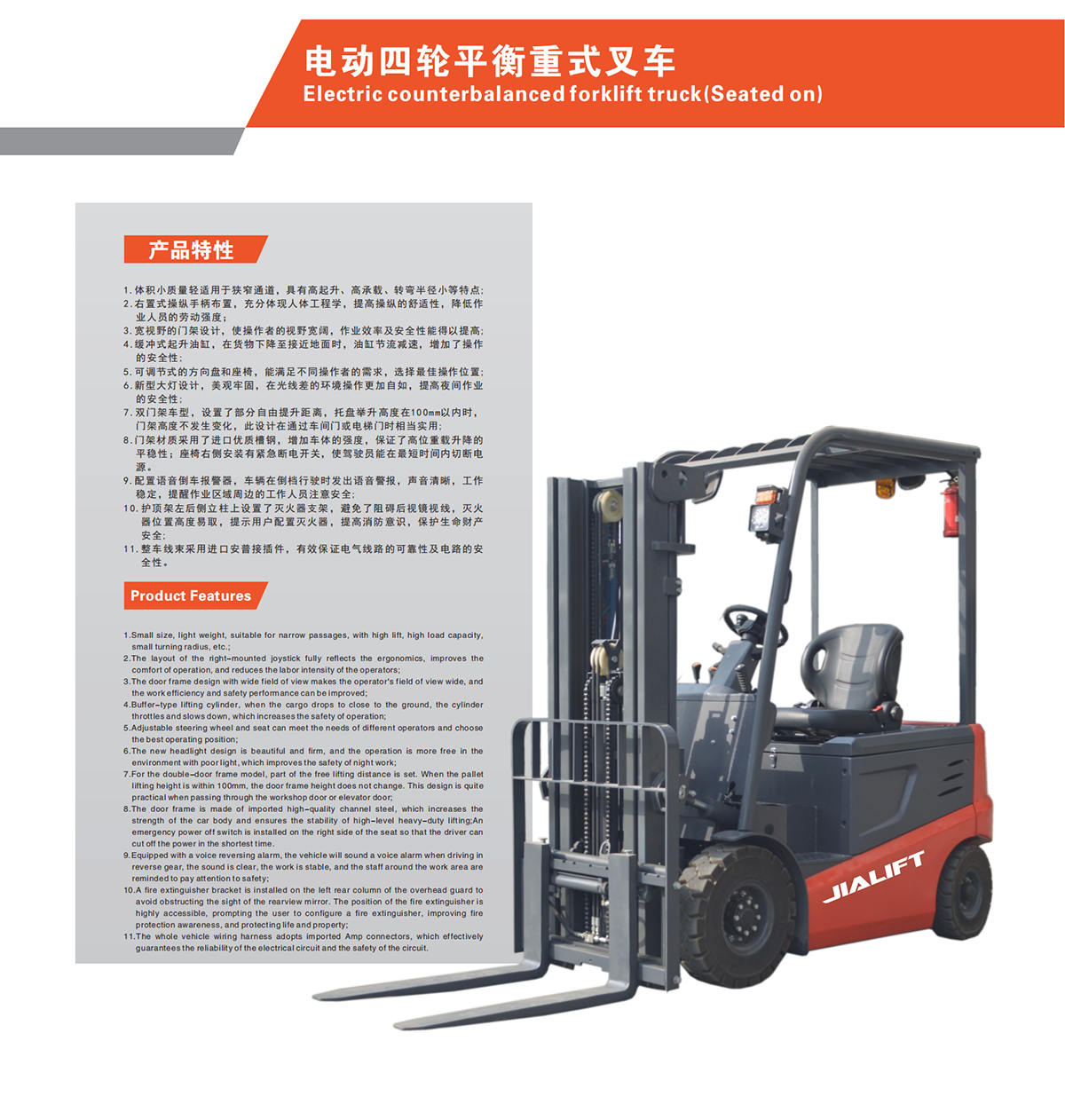

1.Small size, light weight, suitable for narrow passages, with high lift, high load capacity.small turning radius,etc.;
2.The layout of the right-mounted joystick fully reflects the ergonomics, improves thecomfort of operation, and reduces the labor intensity of the operators;
3.The door frame design with wide field of view makes the operator's field of view wide, andthe work efficiency and safety performance can be improved;
4.Buffer-type lifting cylinder, when the cargo drops to close to the ground, the cylinderthrottles and slows down, which increases the safety of operation;

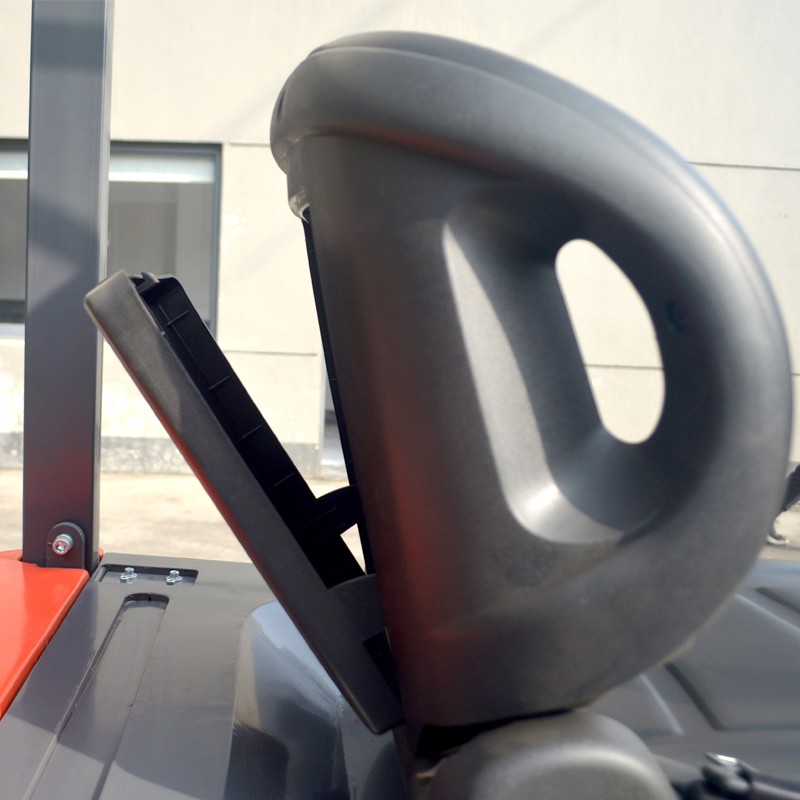

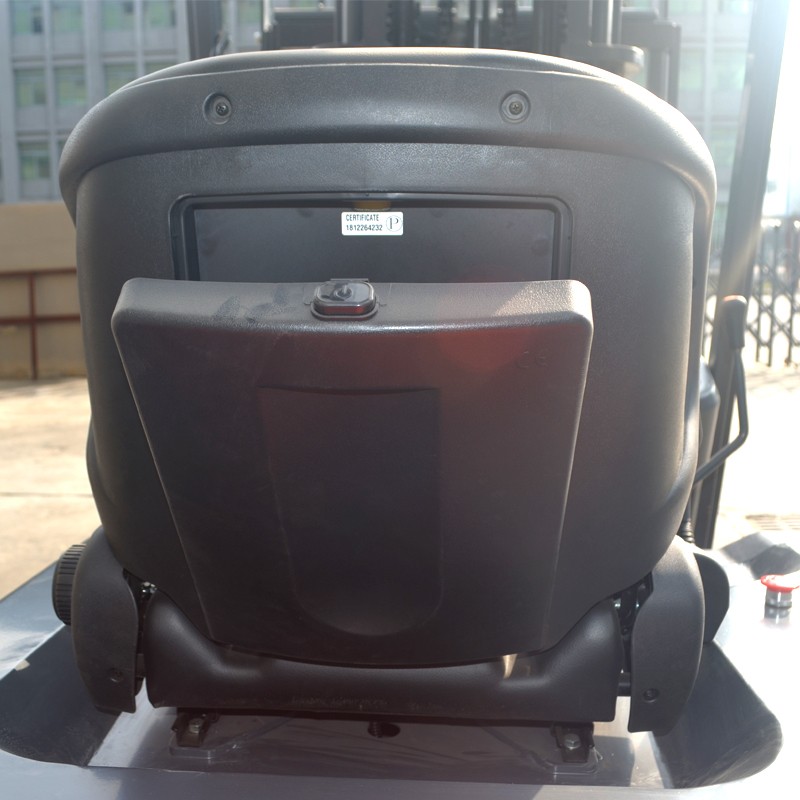

5.Adjustable steering wheel and seat can meet the needs of different operators and choosethe best operating position;
6.The new headlight design makes the operation easier in poor light environment, improves
the safety of night work;
7.For the double-door frame model, part of the free lifting distance is set. When the palletlifting height is within 100mm, the door frame height does not change. this design ispractical when passing through the workshop door or elevator door;
8.The door frame is made of imported high-quality channel steel, which increases thestrength of the car body and ensures the stability of high-level heavy-duty lifting;Anemergency power off switch is installed on the right side of the seat so that the driver cancut off the power in the shortest time:
9,Equipped with a stable voice reversing alarm, the vehicle will issues a clear voice alarmwhen driving in reverse gear, to alert surrounding staff to notice;
10.A fire extinguisher bracket is installed on the left rear column of the overhead guard toavoid obstructing the sight of the rearview mirror. The position of the fire extinguisher ishighly accessible, prompting the user to configure a fire extinguisher, improving fireprotection awareness,and protecting life and property;
11.The whole vehicle wiring harness adopts imported Amp connectors, which effectivelyguarantees the reliability of the electrical circuit and the safety of the circuit.

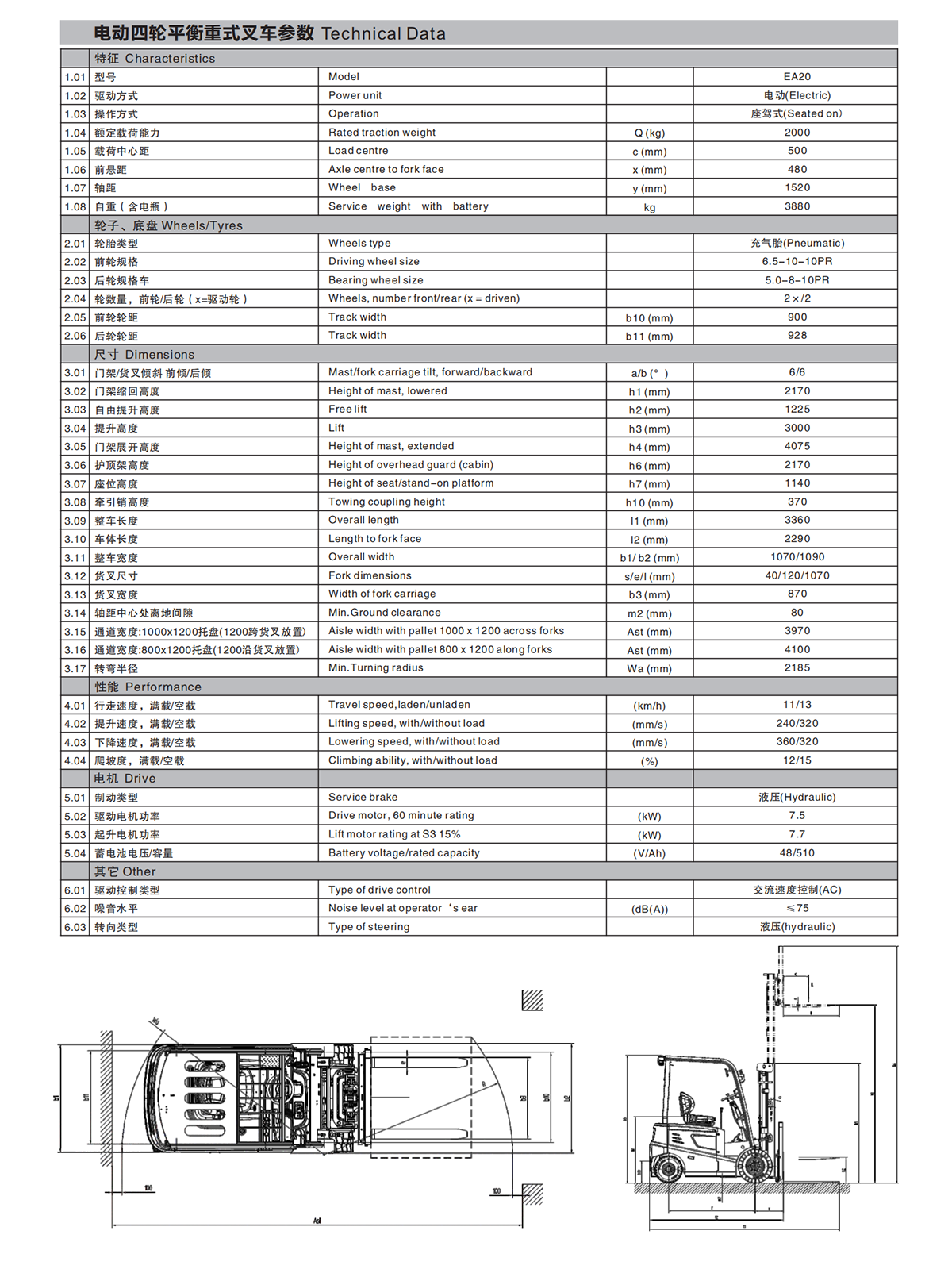

Technical data:
| EA20 | |||
| distinguishing mark | |||
| 1.1 | Manufacturer | JIALIFT | |
| 1.2 | Model | EA20 | |
| 1.3 | Power unit | Electric | |
| 1.4 | Operation | Seated | |
| 1.5 | Rated traction weight | Q（kg） | 2000 |
| 1.6 | Load centre | C（mm） | 500 |
| 1.8 | Axle centre to fork face | x（mm） | 480 |
| 1.9 | Wheel base | y（mm） | 1520 |
| Weight | |||
| 2.1 | Service weight with battery | kg | 3900 |
| 2.2 | Axle loading,laden front/rear | kg | 5100/800 |
| 2.3 | Axle loading,unladen front/rear | kg | 1810/2090 |
| Types,Chassis | |||
| 3.1 | Wheels type | Solid tire | |
| 3.2 | Driving wheel size | 6.50-10 | |
| 3.3 | Bearing wheel size | 5.00-8 | |
| 3.5 | Wheels, number front/rear (x = driven) | 2×/2 | |
| 3.6 | Track width | b10（mm） | 900 |
| 3.7 | Track width | b11（mm） | 928 |
| Dimensions | |||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b（°） | 6/6 |
| 4.2 | Height of mast, lowered | h1（mm） | 2032/2132 |
| 4.3 | Free lift | h2（mm） | 1002 |
| 4.4 | Lift height | h3（mm） | 4500/4800 |
| 4.5 | Maximum height of gantry | h4（mm） | 5595/5895 |
| 4.7 | Height of overhead guard (cabin) | h6（mm） | 2140 |
| 4.8 | Height of seat/stand-on platform | h7（mm） | 1100 |
| 4.12 | Towing coupling height | h10（mm） | 370 |
| 4.19 | Overall length | l1（mm） | 3360 |
| 4.20 | Length to face of forks | l2（mm） | 2290 |
| 4.21 | Overall width | b1/ b2（mm） | 1070/1090 |
| 4.22 | Fork dimensions | s/e/l（mm） | 40/120/1070 |
| 4.25 | Width of fork carriage | b3（mm） | 870 |
| 4.32 | Min.Ground clearance | m2（mm） | 80 |
| 4.33 | Aisle width with pallet 1000 x 1200 across forks | Ast（mm） | 3970 |
| 4.34 | Aisle width with pallet 800 x 1200 along forks | Ast（mm） | 4100 |
| 4.35 | Min.Turning radius | Wa（mm） | 2185 |
| Performance data | |||
| 5.1 | Travel speed,laden/unladen | km/h | 11/13 |
| 5.2 | Lifting speed, with/without load | mm/s | 240/320 |
| 5.3 | Lowering speed, with/without load | mm/s | 360/320 |
| 5.7 | Climbing ability, with/without load | % | 12/15 |
| 5.10 | Service brake | Hydraulic | |
| Electric-engine | |||
| 6.1 | Drive motor, 60 minute rating | kW | 7.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 7.7 |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | |
| 6.4 | Battery voltage/rated capacity | V/Ah | 48/510 |
| 6.5 | Battery weight (± 5%) | kg | |
| Addition data | |||
| 8.1 | Type of drive control | AC | |
| 8.4 | Noise level at operator‘s ear | dB(A) | ≤75 |
