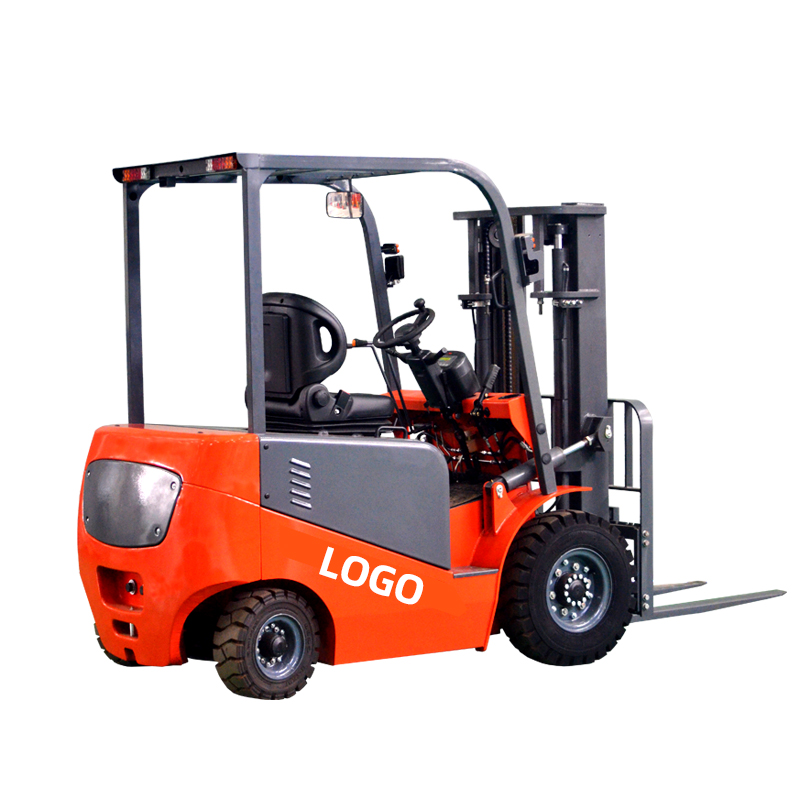

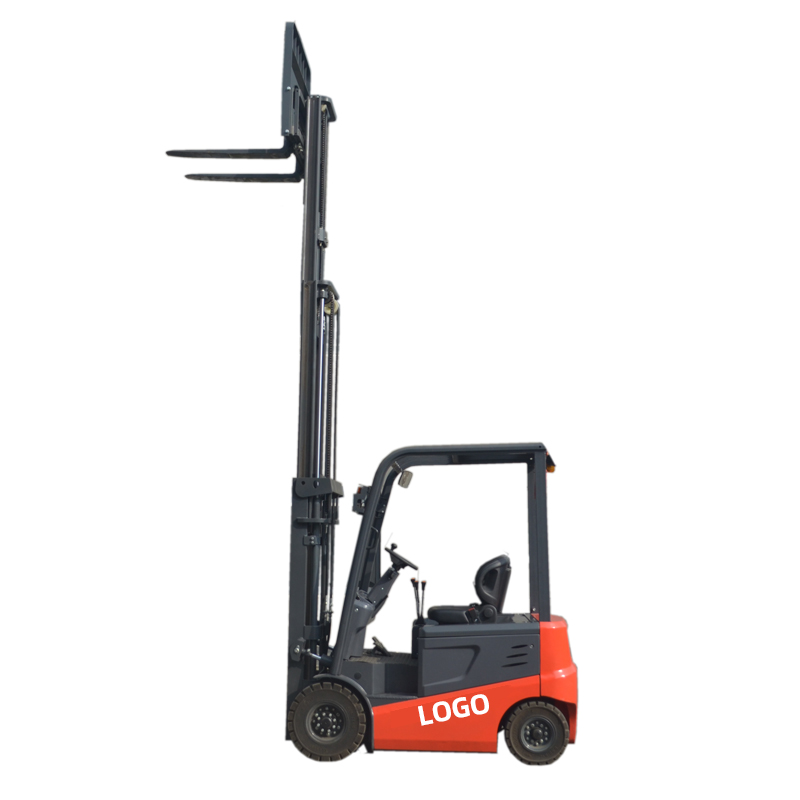

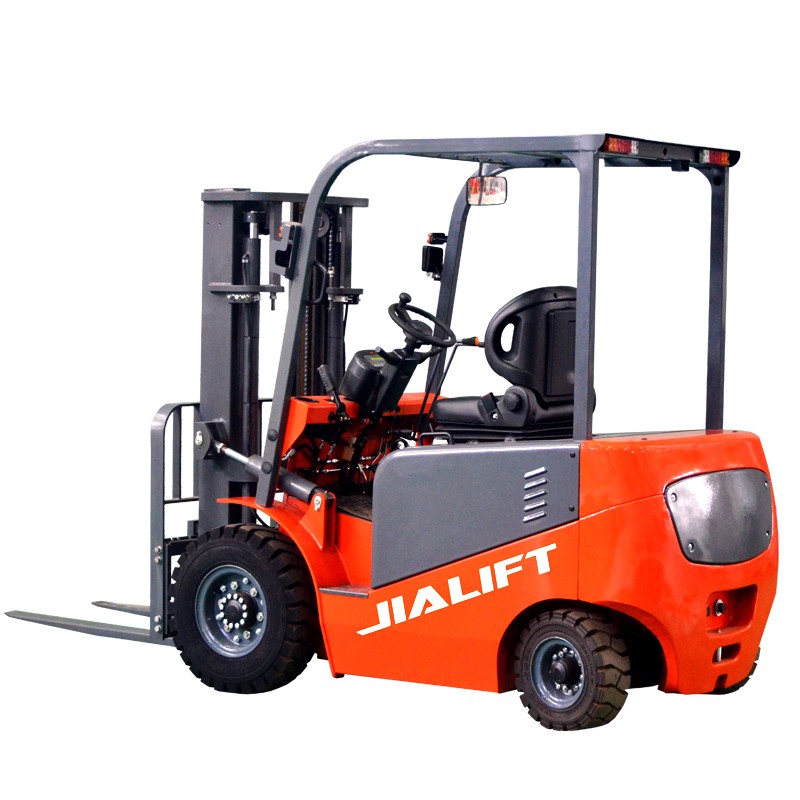

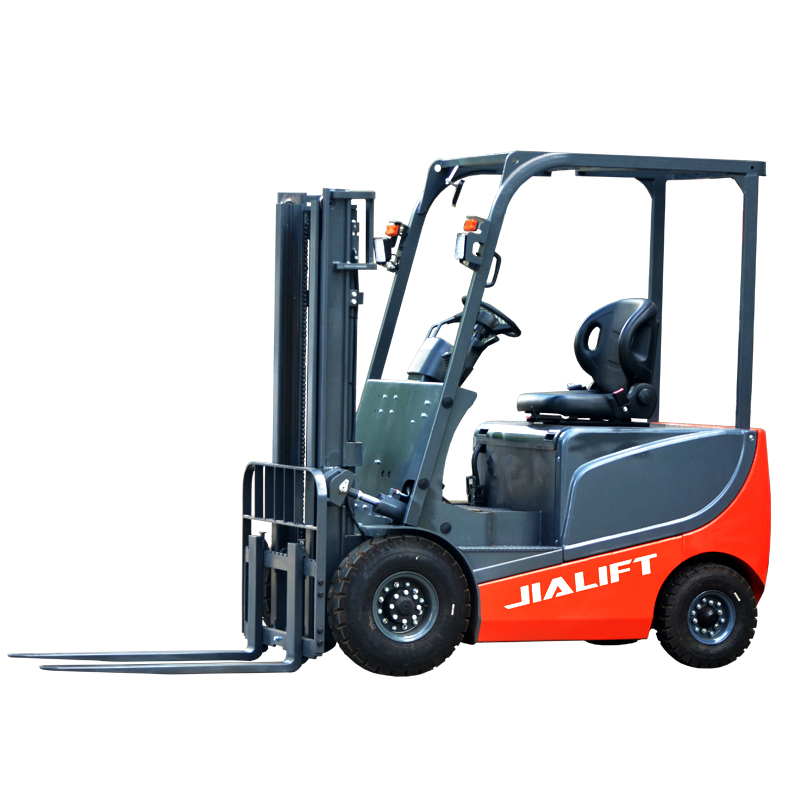

EA series
Electric, Seated on, 1.6T/1.8T/2.0T/2.5T, 3000mm, 48V/385Ah/420Ah/490Ah/560Ah​

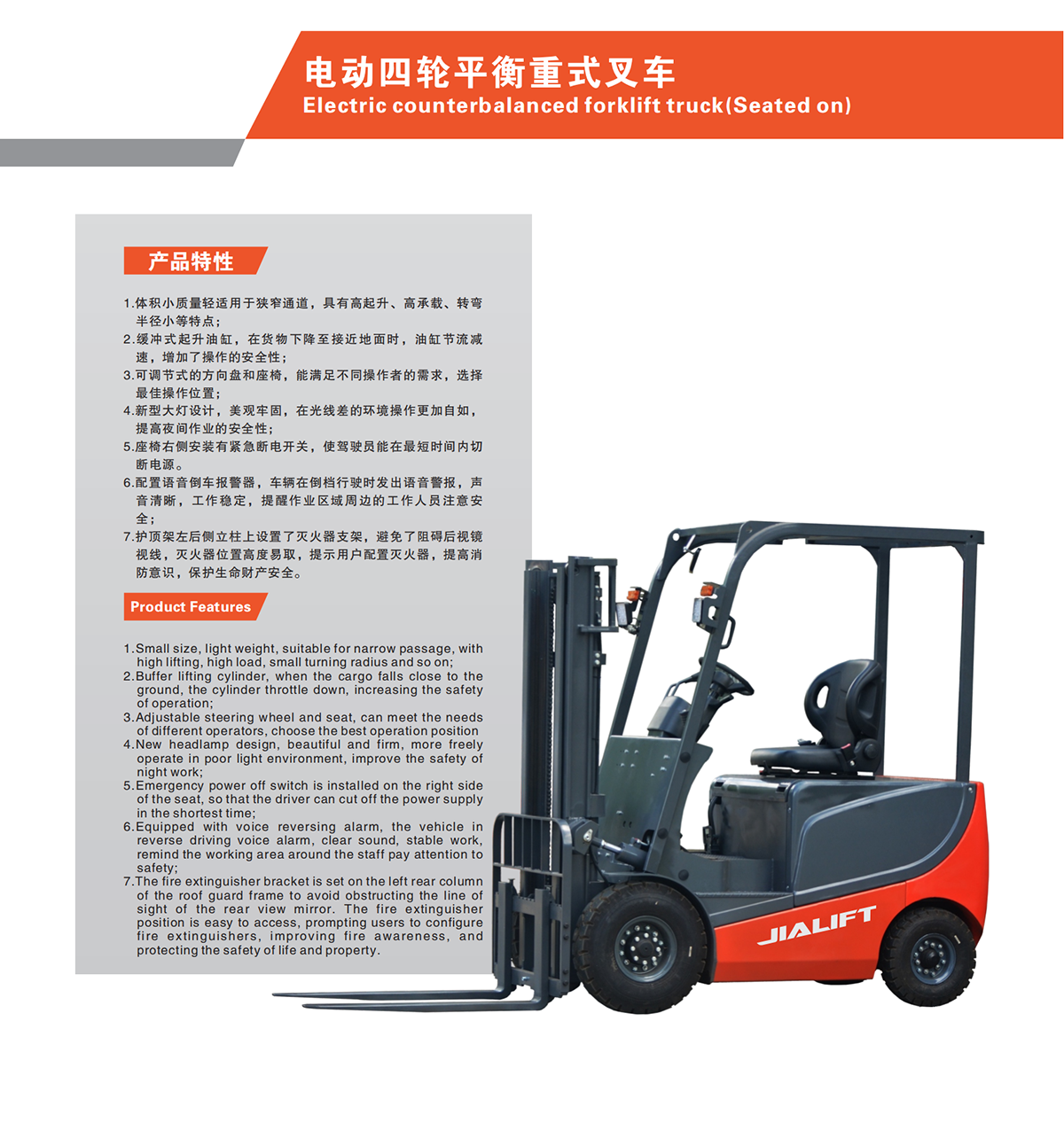

Description


#

  1. Small size, light weight, suitable for narrow passage, withhigh lifting, high load,small turning radius and so on;

  2. Buffer lifting cylinder, when the cargo falls close to theground,the cylinder throttle down, increasing the safetyof operation

  3. Adjustable steering wheel and seat, can meet the needsof different operators,choose the best operation position

  4. New headlight design,with firm quality, more freelyoperate in poor light environment, improve the safety ofnight work;

  5. Emergency power off switch is installed on the right sideof the seat, so that the driver can cut off the power supplyin the shortest time;

  6. Equipped with voice reversing alarm,the vehicle inreverse driving voice alarm, clear sound, stable work,remind the working area around the staff pay attention tosafety;

  7. The fire extinguisher bracket is set on the left rear columnof the roof guard frame to avoid obstructing the line ofsight of the rear view mirror. The fire extinguisherposition is easy to access, prompting users to configurefire extinguishers,improving fire awareness,andprotecting the safety of life and property.

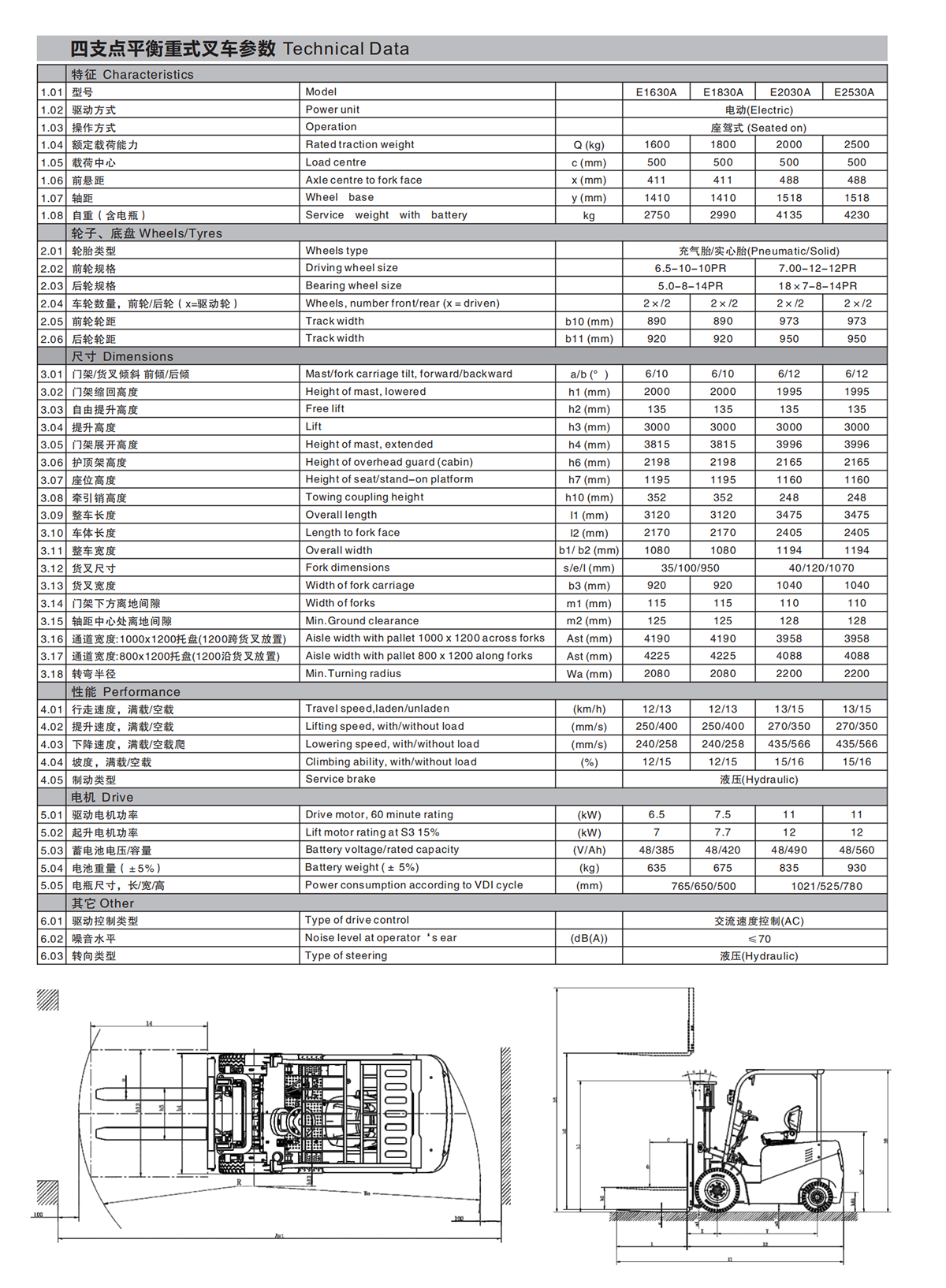

Technical data:



                                                                                      EA16A-E18A
 distinguishing mark
1.1Manufacturer
  JIALIFT
1.2Model
E1630AE1830A
1.3Power unit
electricelectric
1.4Operation
seatedseated
1.5Rated traction weightQ (t)1.61.8
1.6Load centrec (mm)500500
1.8Axle centre to fork facex (mm)411411
1.9Wheel basey (mm)14101410
Weight
2.1Service weight with batterykg27502990
2.2Axle loading,laden front/rearkg3880/4704260/530
2.3Axle loading,unladen front/rearkg1220/15301240/1750
Types,Chassis
3.1Wheels type
Pneumatic/solid tirePneumatic/solid tire
3.2Driving wheel size
6.50-10-10PR/6.50-106.50-10-10PR/6.50-10
3.3Bearing wheel size
5.00-8-14PR/5.00-85.00-8-14PR/5.00-8
3.5Wheels, number front/rear (x = driven)
 2×/2                  2×/2
3.6Track widthb10 (mm)890890
3.7Track widthb11 (mm)920920
 Dimensions
4.1Mast/fork carriage tilt, forward/backwarda/b (°)6/106/10
4.2Height of mast, loweredh1 (mm)20002000
4.3Free lifth2 (mm)135135
4.4Lifth3 (mm)30003000
4.5Height of mast, extendedh4 (mm)40004000
4.7Height of overhead guard (cabin)h6 (mm)21982198
4.8Height of seat/stand-on platformh7 (mm)11951195
4.12Coupling heighth10 (mm)352352
4.19Overall lengthl1 (mm)31203120
4.20 Length to fork facel2 (mm)21702170
4.21Overall widthb1/(mm)1080/10701080/1070
4.22Fork dimensionss/e/l (mm)35/100/95035/100/950
4.25Width of fork carriageb3 (mm)920920
4.31Width of forksm1 (mm)115115
4.32Min.Ground clearancem2 (mm)125125
4.33Aisle width with pallet 1000 x 1200 across forksAst (mm)41904190
4.34Aisle width with pallet 800 x 1200 along forksAst (mm)42254225
4.35Min.Turning radiusWa (mm)20802080
 Performance data
5.1Travel speed,laden/unladen(km/h)12/1312/13
5.2Lifting speed, with/without load(mm/s)250/400250/400
5.3Lowering speed, with/without load(mm/s)240/258240/258
5.7Climbing ability, with/without load(%)12/1512/15
5.10 Service brake
HydraulicHydraulic
 Electric-engine
6.1Drive motor, 60 minute rating(kW)7.57.5
6.2Lift motor rating at S3 15%(kW)7.77.7
6.3Battery according to DIN 43531/35/36 A,B,C,no
nono
6.4Battery voltage/rated capacity(V/Ah)48/38548/420
6.5Battery weight (± 5%)(kg)635675

Power consumption according to VDI cycle(mm)765/650/500765/650/500
Addition data
8.1Type of drive control
ACAC
8.4Noise level at operator‘s ear(dB(A))≤70≤70
